Rooftop Pipe Support Application Configurations

Suggested Engineering Specification

ApplicationConfigurations >
Photo Gallery

To access larger images, specifications sheets, and CAD files, click links or images.

Complete Application Library & Configuration Index

Application Configuration Index Only

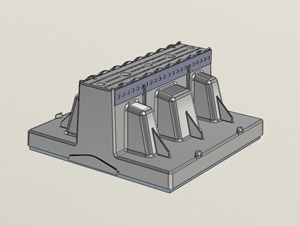

RTB-01 Roof Top Blox Only

Roof Top Blox configured with:

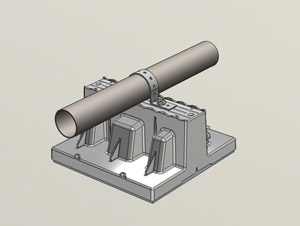

• 011-Perforated Pipe Strap

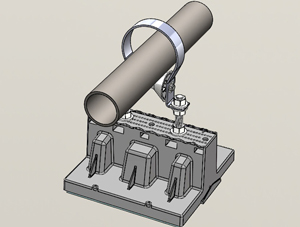

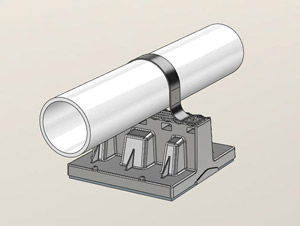

• 012-Single Pipe U-Clamped

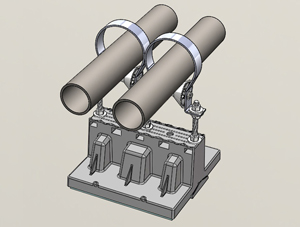

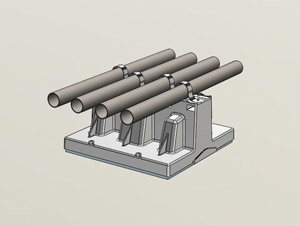

• 013 Multiple Pipes Clamped

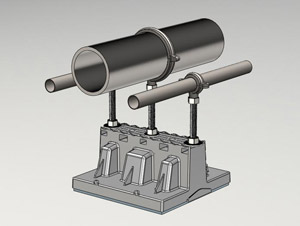

• 014-Elevated Split Ring Clamps

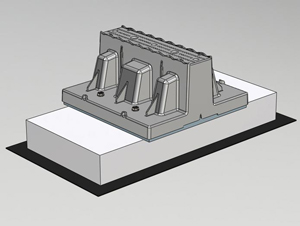

• 015-Concrete Anchor Weights

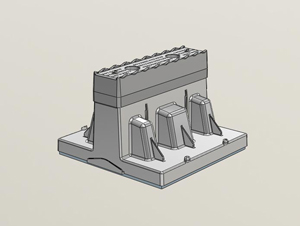

• 021-1-1/2" Height Extension
• 022-Elevated Height Accessory

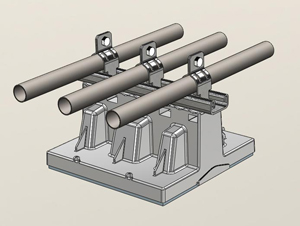

• 041-Attached Strut

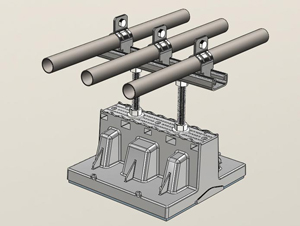

• 042-Elevated Strut

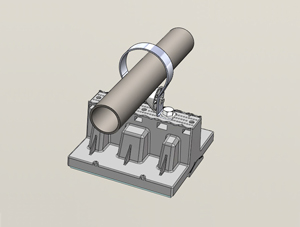

• 051-1"-3" Pipe Roller
• 052-Elevated 1"-3" Pipe Roller

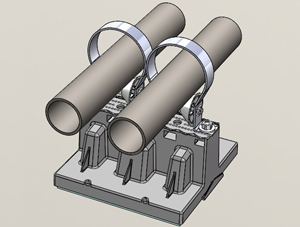

• 053-Two 1"-3" Pipe Roller
• 054-Two Elevated 1" - 3" Pipe Roller
• 055-Blox with 1"- 3" Pipe Roller &
  Securing Brackets
• 061-4"-6" Pipe Rollers
• 062-Elevated 4"-6" Pipe Rollers
• 063-2 Blox Bridge with Multiple
  4"-6" Pipe Rollers
• 064-2 Blox Bridge with Elevated
  4"-6" Pipe Rollers
• 071-RTB with Securing Bracket
• 081-2 Blox Bridge with Multiple
  Pipes & Strut Clamps
• 082-2 Blox Bridge with Underhung
  Piping
• 083-2 Blox 2-Tier Bridge Piping Rack
• 084-2 Blox Ductwork Stand
• 088-Mechanical/Electrical Stand
• 089- 2 Blox 2-Tier Bridge Piping
  Rack w/SCB-07
• 091- 4 Blox Bridge with Elevated
  4"-6" Roller
• 092- 4 Blox Bridge with 4"-6" Rollers
  for Insulated Pipe
• 093-4 Blox Bridge Ductwork Stand
